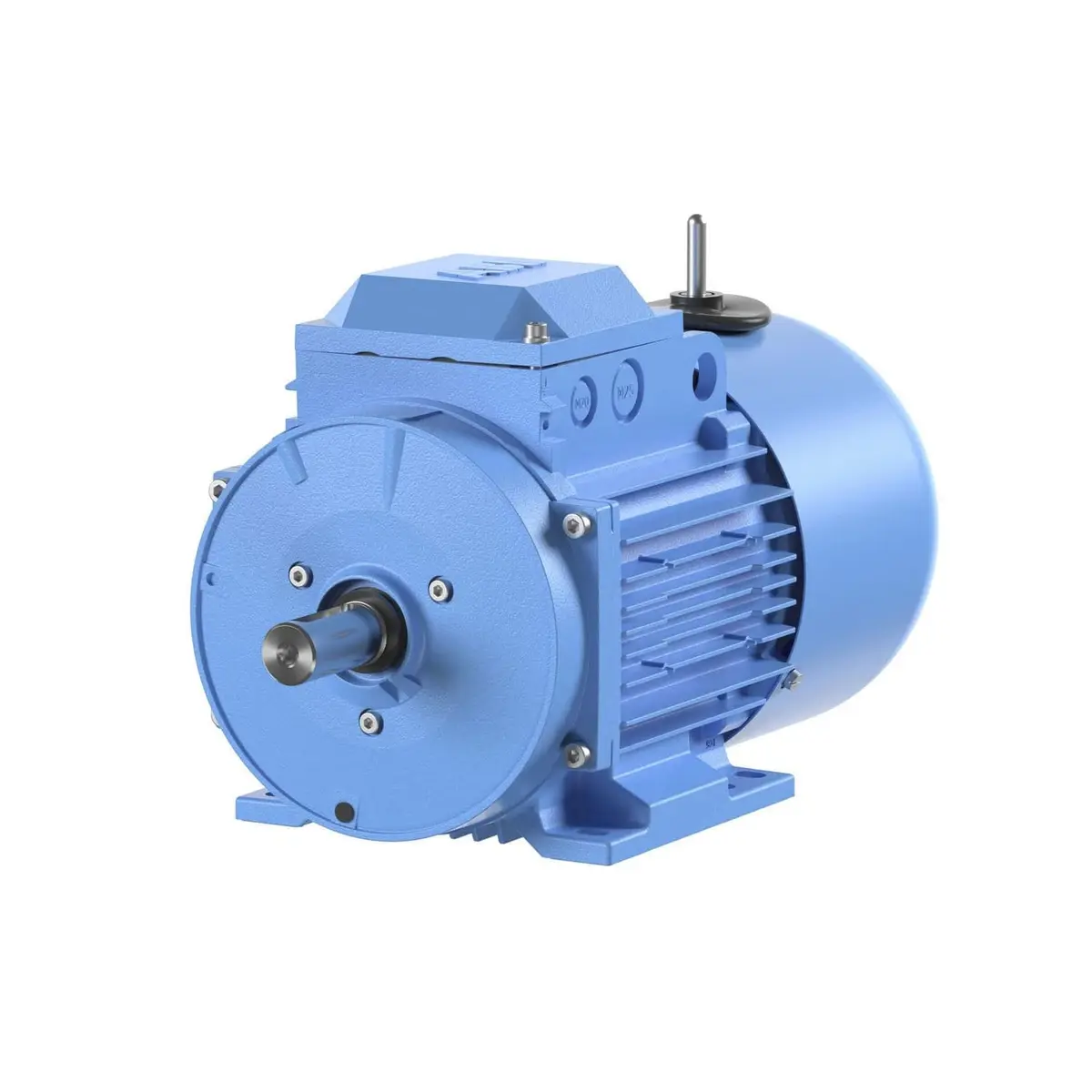

ABB M3AA Series Motor with Brake

ABB M3AA Series Motor with Brake – Overview & Key Features

The ABB M3AA Series Motor with Brake is a high-performance industrial brake motor engineered for applications where instantaneous stopping of the driven load is critical. When electrical power to the motor is shut down—or fails unexpectedly—the integrated brake engages automatically, delivering fail-safe operation without external power. Built on ABB's proven technology, the M3AA Series offers IE3 and IE2 efficiency compliance, meeting current EcoDesign regulations for industrial motors.

Key Motor Features

• Robust design suited to demanding industrial environments
• Proven reliability with extended operational service life
• Great flexibility for application-specific solutions
• Wide range of options and accessories available
• High-quality procedures enforced from design through finished product

Key Brake Features

• Specially developed brake for highest functional security
• Braking disc with low wear and minimal maintenance requirements
• Easy installation and straightforward commissioning

Practical Applications & How It Works

The ABB M3AA brake motor is widely deployed in industries where controlled stopping, load holding, and safety-critical braking are essential. Typical use cases include:

• Material handling and conveyors – safe load positioning and controlled deceleration
• Cranes, hoists, and winches – holding suspended loads stationary when power is removed
• Packaging and labeling machinery – precise stop positions for repeatable accuracy
• Textile and printing equipment – controlled deceleration of high-speed rollers
• Machine tools and woodworking machinery – emergency braking and operator safety

Operating Principle

The brake operates on a fail-safe principle: when electrical power to the motor is interrupted—whether by deliberate shutdown, emergency stop, or unexpected power failure—internal brake springs engage automatically. This mechanical action holds the load securely without requiring any external power source, protecting both personnel and equipment.

Why Source Through Spare Parts Map

Spare Parts Map is a global supplier of industrial spare parts, primarily serving European markets, with over 20 years of industry experience. We respond to inquiries quickly and ensure your products reach you without complications. Our team provides technical guidance, fast quotation turnaround, and reliable worldwide delivery for ABB M3AA Series motors and other industrial spares.

Note: Pricing and availability are provided on request. Submit a Request Quote (RFQ) form to receive current lead times, condition details, and shipping options tailored to your location.

Frequently Asked Questions (FAQ)

Q: What efficiency class does the ABB M3AA Series brake motor meet? A: The ABB M3AA Series complies with IE3 and IE2 efficiency standards under the EcoDesign regulation, making it suitable for energy-conscious industrial operations across regulated markets.

Q: How does the brake engage on the M3AA motor? A: The brake automatically engages when electrical power to the motor is interrupted—through normal shutdown, emergency stop, or power failure. This fail-safe design holds the load in place without requiring any external power.

Q: What maintenance does the braking disc require? A: The specially developed braking disc features low-wear characteristics that reduce maintenance frequency. Routine inspection of the air gap and disc condition is recommended according to ABB's standard service intervals.

Q: Can I request a specific configuration of the M3AA Series? A: Yes. Spare Parts Map supports sourcing of specific M3AA Series configurations, including mounting options, brake torque ratings, and compatible accessories. Submit a Request Quote with your full specification details for a tailored response.
