ABB S100 Analog I/O System

ABB S100 Analog I/O System Overview & Key Features

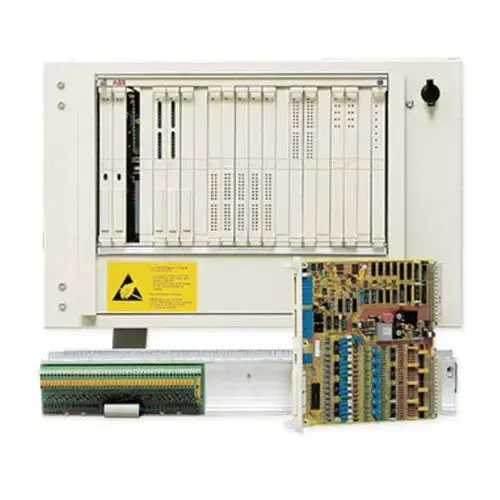

The ABB S100 Analog I/O system is a racked-based input/output platform engineered for the Advant Master Distributed Control System (DCS). Designed to support the Advant Controller 400 Series, the S100 provides flexible analog and binary signal handling across modules with 4 to 32 channels, depending on module type and function. Its modular design allows plant operators to scale I/O capacity to match specific application requirements without redesigning the controller architecture.

Key features include:

• Racked-based modular architecture compatible with Advant Controller 410 and Advant Controller 450
• I/O modules supporting 4 to 32 channels depending on type
• Bus extension cable connection up to 12 m (39 ft) between controller and I/O rack
• Optical bus extension enables distributed I/O placement up to 500 m (1640 ft) from the controller
• Advant Controller 450 interfaces with up to five S100 sub-racks via a single or redundant interface module
• Advant Controller 410 includes an integral S100 I/O rack for compact system configurations
• Available variants for Intrinsic Safety Modules and HART Multiplexers integration
• Optical modem support for remote sub-rack placement across plant areas
• Comprehensive I/O coverage including general-purpose binary and analog inputs and outputs, plus specialized interfaces for dedicated tasks

Practical Applications / How It Works

The ABB S100 Analog I/O system connects field devices such as transmitters, valves, positioners, and process sensors to ABB Advant Master controllers in continuous process industries including power generation, oil and gas, pulp and paper, chemical manufacturing, and water treatment.

The Advant Controller 410 incorporates an integral S100 I/O rack, simplifying installation in compact control cabinets where space is limited. The Advant Controller 450 uses a dedicated interface module (available in single or redundant configurations) to connect up to five S100 sub-racks, enabling distributed I/O architectures across large plant floors. Through optical modems and the optical bus extension, S100 I/O sub-racks can be located up to 500 m from the controller, reducing long analog signal cable runs and improving signal integrity in electrically noisy or hazardous environments.

S100 I/O boards are organized by function, with variants engineered for general-purpose binary and analog I/O as well as specialized tasks such as Intrinsic Safety (IS) barrier integration for hazardous area installations and HART multiplexer connectivity for smart instrumentation networks. This range makes the S100 suitable for both standard process control loops and safety-critical applications where explosion-proof instrumentation is required.

Sourcing & Supply from Spare Parts Map

Spare Parts Map supplies the ABB S100 Analog I/O system and related Advant Master DCS components to operators across Europe and worldwide. With over 20 years of experience in industrial spare parts sourcing, the team responds to inquiries quickly, verifies part compatibility against existing controller configurations, and coordinates logistics to ensure components reach plant sites without supply chain disruptions. As a global supplier of industrial spare parts, Spare Parts Map supports both obsolete and current ABB DCS hardware, helping operators extend the lifecycle of installed Advant Master systems. Contact Spare Parts Map to request a quote for current stock, lead time, unit condition (new or refurbished), and worldwide delivery options for the S100 modules you require.

Frequently Asked Questions (FAQ)

Q: Which ABB controllers are compatible with the ABB S100 Analog I/O system? A: The S100 I/O system is engineered for the Advant Controller 400 Series, specifically the Advant Controller 410 and Advant Controller 450 used within the Advant Master DCS.

Q: How many channels does each S100 I/O module support? A: S100 I/O modules support between 4 and 32 channels depending on the module type and its function within the rack configuration.

Q: Can S100 I/O sub-racks be placed remotely from the controller? A: Yes. Optical modems and the optical bus extension allow S100 sub-racks to be distributed up to 500 m (1640 ft) away from the controller. Standard bus extension cables support distances up to 12 m (39 ft).

Q: Does Spare Parts Map supply new or refurbished S100 modules, and how do I order? A: Spare Parts Map supplies both new and refurbished ABB S100 components. As no direct purchase option is offered on the website, customers should request a quote to confirm availability, condition, lead time, pricing, and worldwide delivery options for their specific part number.
